Descripción:

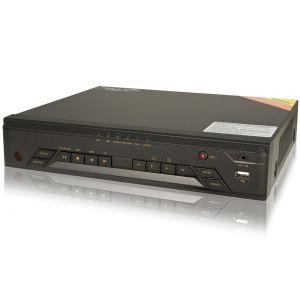

4CH H.264 NVR, Grabación en tiempo real HD 720P ó 1080P@15FPS/CH, de 1920x1080 HDMI hasta 1280x1024 VGA de salida, 1 x SATA HDD, vigilancia de teléfono móvil, IR Extender (Cable IR Extender no incluido)
Código: LTD2804NS-L
Comparte este producto
| Model No. | LTD2804NS-L | |
| System | Compression Format | H.264 |
| OS | Embedded Linux | |
| Video | ||
| Standard Output | Composite: 1.0Vp-p.75Ω BNCx1, VGAx1, HDMIx1 | |
| Audio | Input | RCAx1 |
| Output | RCAx1 | |
| Bidirectional Talk | YES | |
| Recording | ||
| 1080P | 15FPS/CH | |
| 720P | 30FPS/CH | |
| Recording Mode | Sensor, Timer, Manual, Motion Detection | |
| Playback | Max Playback | 4CH |
| Search Mode | Time/calender search, event(motion, external alarm) | |
| Smart Search | - | |
| Backup | USB Disk | 2 USB 2.0 port |
| DVD Burner | - | |
| Backup Format | DAT or AVI | |
| Remote Application | ||
| Browser | IE (windows XP/2000/vista/7), Safari(Mac OS) | |
| Master Stream in Network | YES | |
| CMS | YES | |
| Mobile Phone | BroView/ for iPhone/Android, BroCMS for iPad | |
| User Access | - | |
| Alarm | Mode | Sensor, Motion, Video Loss |
| Alarm Input | 4CH | |
| Alarm Output | 1CH | |
| Triggering | Record, PTZ move, alarm out, email, etc. | |
| Storage | HDD | 1 SATA |
| e-SATA | - | |
| Max HDD after Deploying DVD | - | |
| PTZ | PTZ | 1*RS485 |
| PTZ Protocol | PELCOP,PELCOD,LILIN,MINKING,NEON,STAR,VIDO,DSCP,VISCA, SAMSUNG, RM110,HY |
|
| PTZ Control | Pan, Tilt, Zoom, Preset, Cruise, Trace | |
| Network | Ethernet | 10 / 100 Mbps Ethernet (RJ-45) |
| Protocol | TCP/IP, DHCP, DDNS, PPPOE | |
| Other | IR Controller | 1 |
| External IR Receiver Interface | Yes | |
| Power Supply | DC12V | |
| Operating Temperature | 0°C ~50°C | |
| Humidity | 10% ~ 90% Humidity | |
| Product Weight | - | |
| Product Dimension | 11.75" (l) x 10" (w) x 2.25"(h) | |
