Descripción:

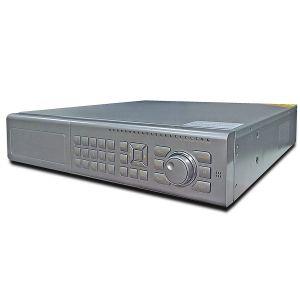

LTD2708XD adopta chips de procesamiento de vídeo de alto rendimiento e incrustado Linux. Utiliza las tecnologías más avanzadas, como la norma H.264, realtime1080P/D1 grabación, 4 canales de reproducción 1080P, Compatible con HDMI 1920 * 1080 de salida, control remoto completo a través del navegador IE, vigilancia móvil (por los teléfonos celulares), etc
Código: LTD2708XD
Comparte este producto
| System | Compression Format | H.264 |
| OS | Embedded Linux | |
| Video | Input | SDIx4, CVBSx4 |
| VGA Output | 1*VGA:1280x1024 | |
| BNC | 1*BNC Mainout | |
| Loop Output | 1*Loopout | |
| Spot Output | 1*Spot | |
| HDMI | Compatible with HDMI 1920*1080 output, progressive scan, 60Hz frame rate. | |
| Audio | Audio Input | 4CH |
| Audio Output | 1CH | |
| Bidirectional Talk | Yes | |
| Recording | Real Time Recording | real time 1080P/D1 |
| 1080P | 120(NTSC)/100(PAL)fps | |
| D1 | 120(NTSC)/100(PAL)fps | |
| Recording Mode | Schedule, Manual,Motion, Sensor | |
| Playback | Playback Channel | 4CH |
| Search Mode | Time, Event, File Management, Image(snapshot) | |
| Backup | USB Disk | 1 USB2.0 port |
| DVD Burner | Optional | |
| Backup Format | DAT or AVI | |
| Dual Stream | Master Stream | 1CH (selectable) 30fps @ 1080P |
| Network Stream | 1-30fps @ CIF | |
| Remote Application | Browser | IE (windows XP/vista/7), Safari(Mac OS) |
| CMS | YES | |
| Mobile Phone OS |
SuperCam/pro/HD for iPhone(iPad/iPad2)/ Blackberry/Android |
|
| User Access | 18 users online with professional authority management | |
| Alarm | Alarm Input | 8CH |
| Alarm Output | 4CH | |
| Storage | HDD (Each max. size 2 TB | 6 |
| e-SATA | 2 | |
| Max HDD after Deploying DVD Writable Driver |
4 | |
| PTZ | ||
| PTZ | 1*RS485 | |
| PTZ Protocol |
PELCOP,PELCOD,LILIN,MINKING,NEON,STAR,VIDO,DSCP, VISCA, SAMSUNG,RM110,HY | |
| PTZ Control | pan, tilt, zoom, preset, cruise, trace |
|
| Network | Ethernet | 1,000 Mbps Ethernet (RJ-45) |
| Protocol | TCP/IP, DHCP, DDNS, NTP, SMTP | |
| Others | Remote Control | 1 |
| Power Supply | 100VAC ~ 240VAC | |
| Operating Temperature |
0°C ~50°C | |
| Humidity |
10% ~ 90% Humidity | |
| Dimension |
16.75” (l) x 17.75 (w) x 3.5” (h) |
